Description
Cutting Depth: 5/8″
Classification: Standard (Yellow)

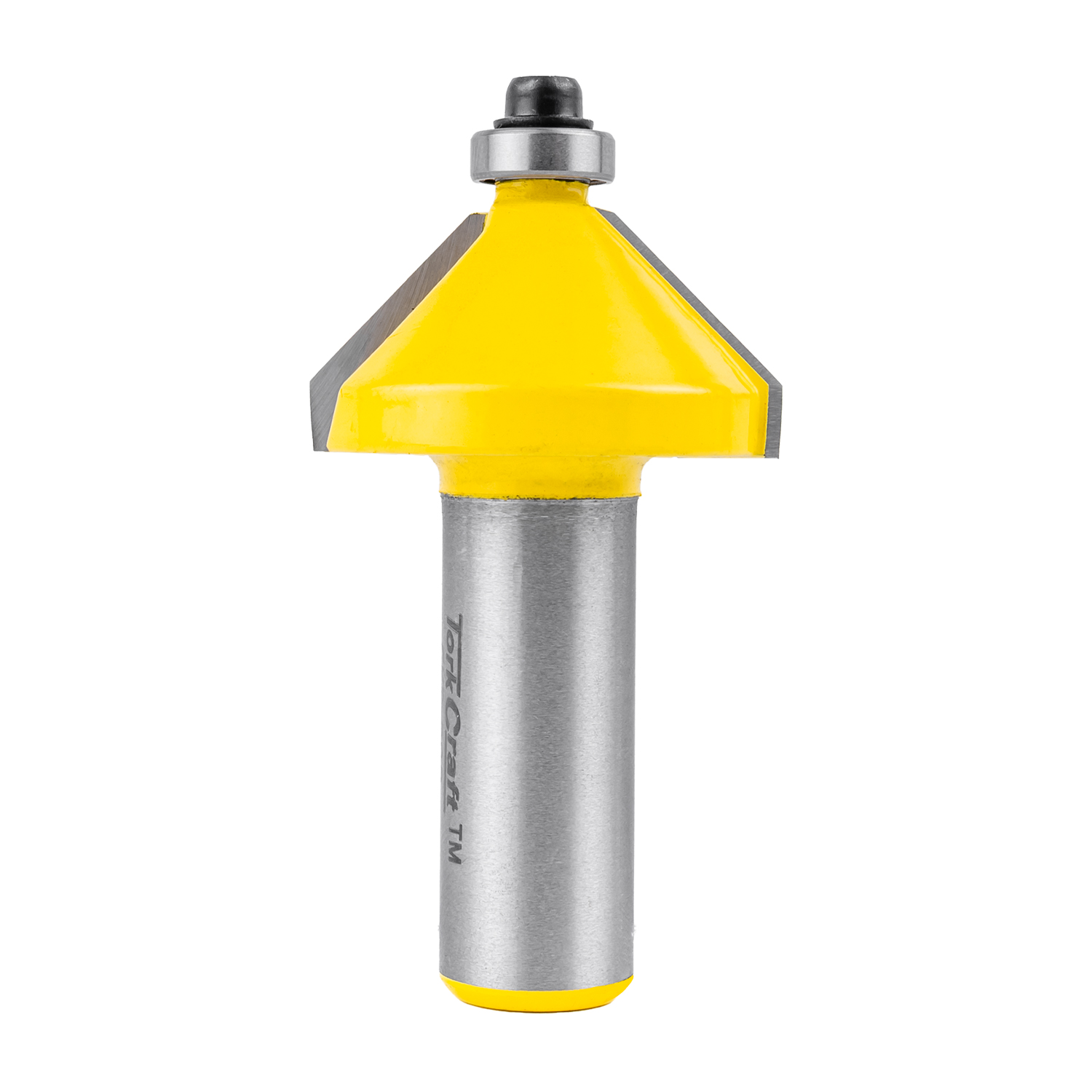

The Chamfer Router Bit is an indispensable edge-forming tool in woodworking, specifically engineered to cut a precise, flat beveled angle into the sharp, 90-degree corner of a workpiece.
Defined by its straight cutting edge set at an angle—most commonly 45°, but also available in 22.5°, 30°, and other degrees—this bit allows you to create a crisp, clean diagonal face on an edge. It is a highly versatile tool, most frequently used to soften a sharp edge for comfort and visual appeal, or to add a refined, subtle decorative detail to furniture, tabletops, and built-ins.
Beyond simple edge detailing, the chamfer bit is critical for creating perfect, tight-fitting miter joints for multi-sided projects like custom boxes, picture frames, and planters, as the angled cut ensures a seamless corner without complex saw setups.
Most chamfer bits feature a guide bearing at the tip, which rides along the edge of the material to control the depth and width of the cut, ensuring perfectly consistent results with minimal setup.
Application:
- Router bits are for use with router machines only.
- Be sure that at least 3/4 of the shaft length is inserted into the router collet.
- Do not ‘bottom-out’ the bit in the collet. The shank should be 1/8′ from the bottom of the collet.
- Route in two or more passes when large amounts of stock must be removed.
- Carpenters
- Craftsmen
- Hobbyists
- Woodworking
- DIY
