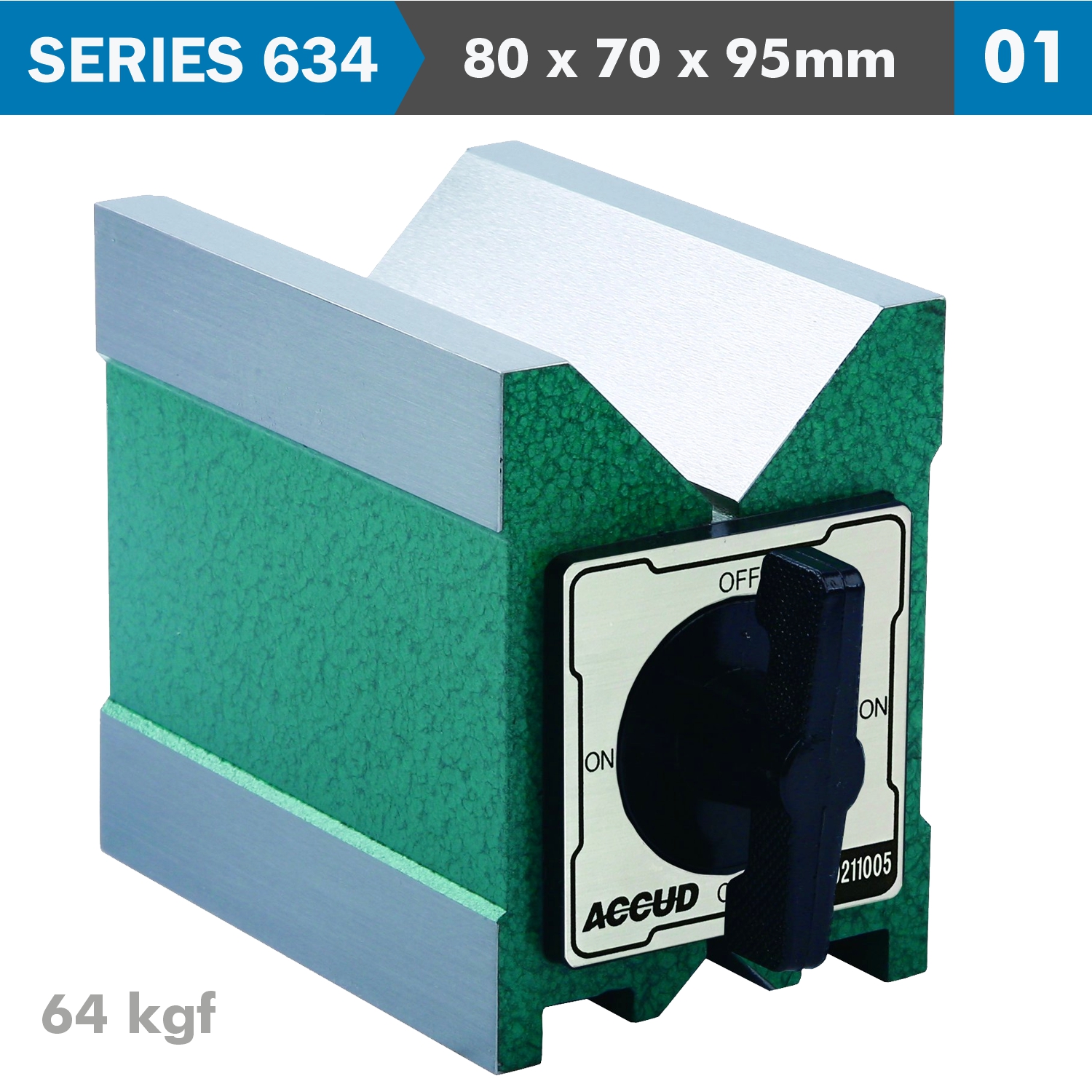

MAGNETIC V-BLOCK 80X70X95MM 64KGF

A magnetic V-block is a versatile tool commonly used in machining, inspection, and precision engineering tasks. It is designed to hold cylindrical or irregularly shaped workpieces securely in place during operations such as grinding, milling, drilling, or inspection. The ‘V’ shape of the block allows it to cradle round or cylindrical objects, while the integrated magnetic base provides a strong, stable grip on ferrous materials, ensuring the workpiece remains steady during use.

• Hold cylindrical workpiece for inspection and machining
• Top groove for large shafts
• Bottom grooves for small shafts

Applications of a Magnetic V-Block

• Workpiece Holding: Commonly used to hold cylindrical or irregularly shaped workpieces securely in place during machining operations such as grinding, milling, or drilling.
• Inspection and Measurement: Used in inspection processes to hold parts securely during precision measurement, ensuring accurate readings.
• Surface Grinding: Ideal for holding workpieces during surface grinding operations, providing a stable and accurate setup.
• Marking and Layout: Useful for marking and layout operations where the workpiece needs to be held steady for accurate scribing or punching.
